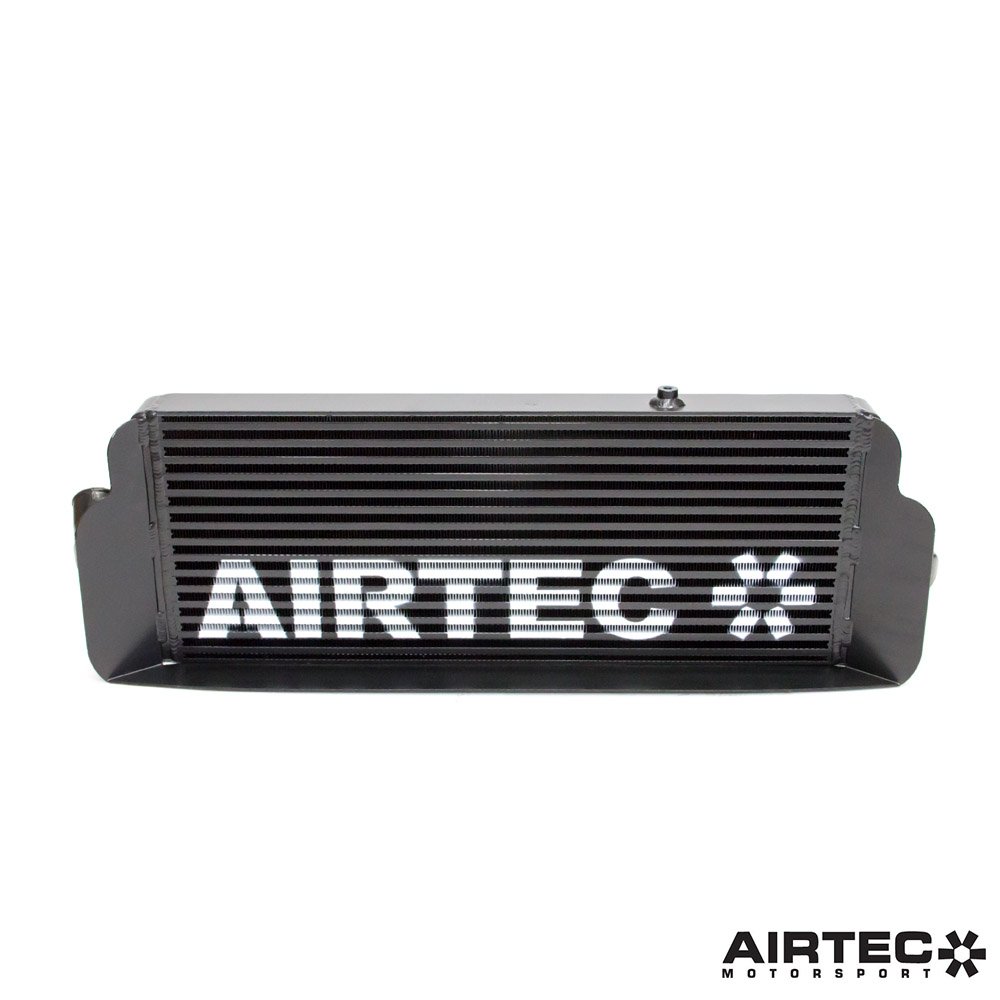

AIRTEC Motorsport Stage 2 Intercooler Upgrade for Mk2 Focus ST

Technical Data

As part of our expanding Focus RS product range, AIRTEC Motorsport is proud to launch our Stage 2 intercooler upgrade suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed an improved version of our Generation 3 intercooler that includes an air ram scoop to force cold air through the core for more efficient air flow and to ensure cooler charge temperatures.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a 60mm core that’s twice as high and almost 100mm longer than the standard item. This offers a massive increase in overall capacity in comparison to the original intercooler, as well as a 127% increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow end tanks and air diverter scoop to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Bolt on power; no extra parts required to fit, connects to standard size boost hoses and comes with all fixtures and fittings.

DYNO TESTED

Torque of the Devil Rolling Road test results – 31/01/2009

Standard intercooler

275bhp

350lb ft of torque

144 degrees Inlet Temperature

66 degrees Outlet Temperature

AIRTEC Motorsport Gen-3 intercooler

296.4bhp

390 lb ft of torque

148 degrees Inlet Temperature

30 degrees Outlet Temperature

Features:

• Huge high flow 60mm core
• 127% increase in frontal area for improved air flow
• Air scoop diverts flow towards the core
• Smooth flow end tanks
• AIRTEC logo brackets
• Increased BHP & torque Figure
• Pro-Series Black powder coated finish
• Strongest intercooler available, backed up by our 3 year warranty

AIRTEC Part No: ATINTFO20
