AIRTEC Motorsport Intercooler Upgrade for Audi TT RS 8J

Technical Data

AIRTEC are proud to introduce the front mount intercooler upgrade for the Audi TT RS (8J).

Designed to fit all models, this free-flowing intercooler is a direct replacement for the smaller and more restrictive OEM set up.

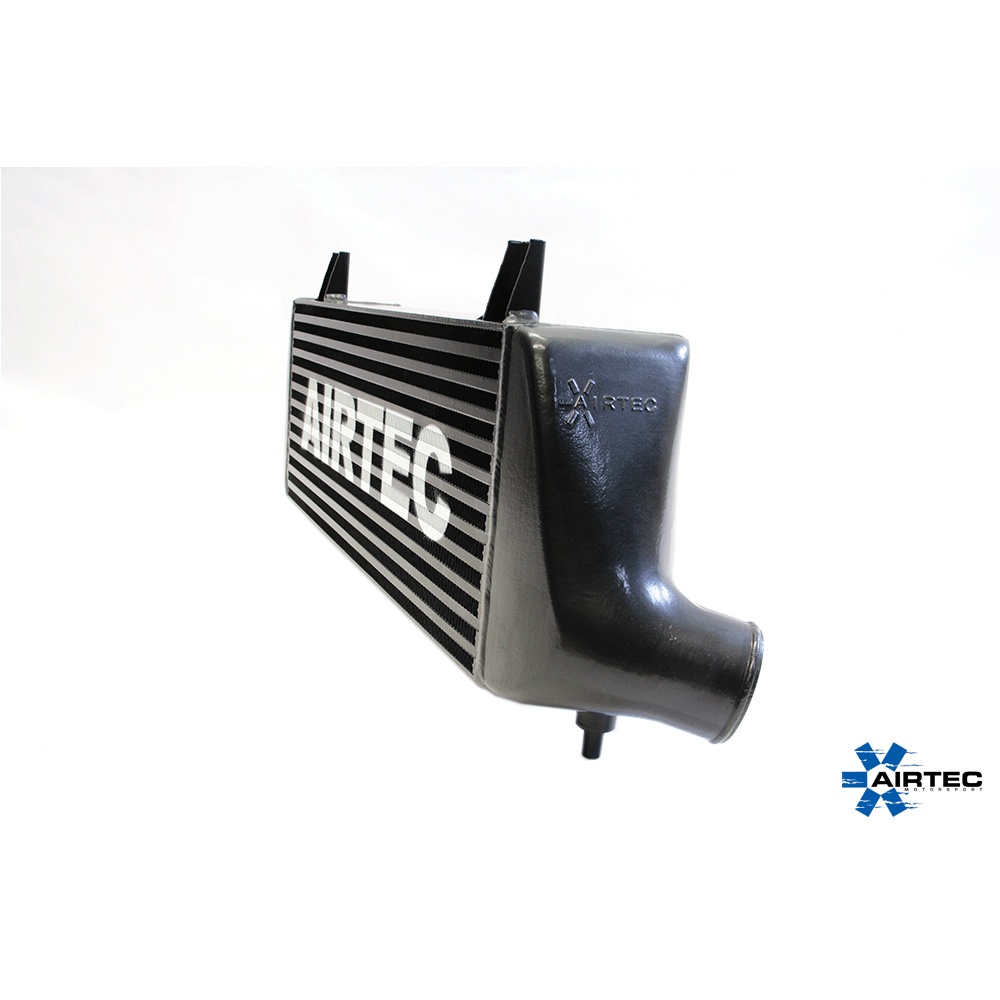

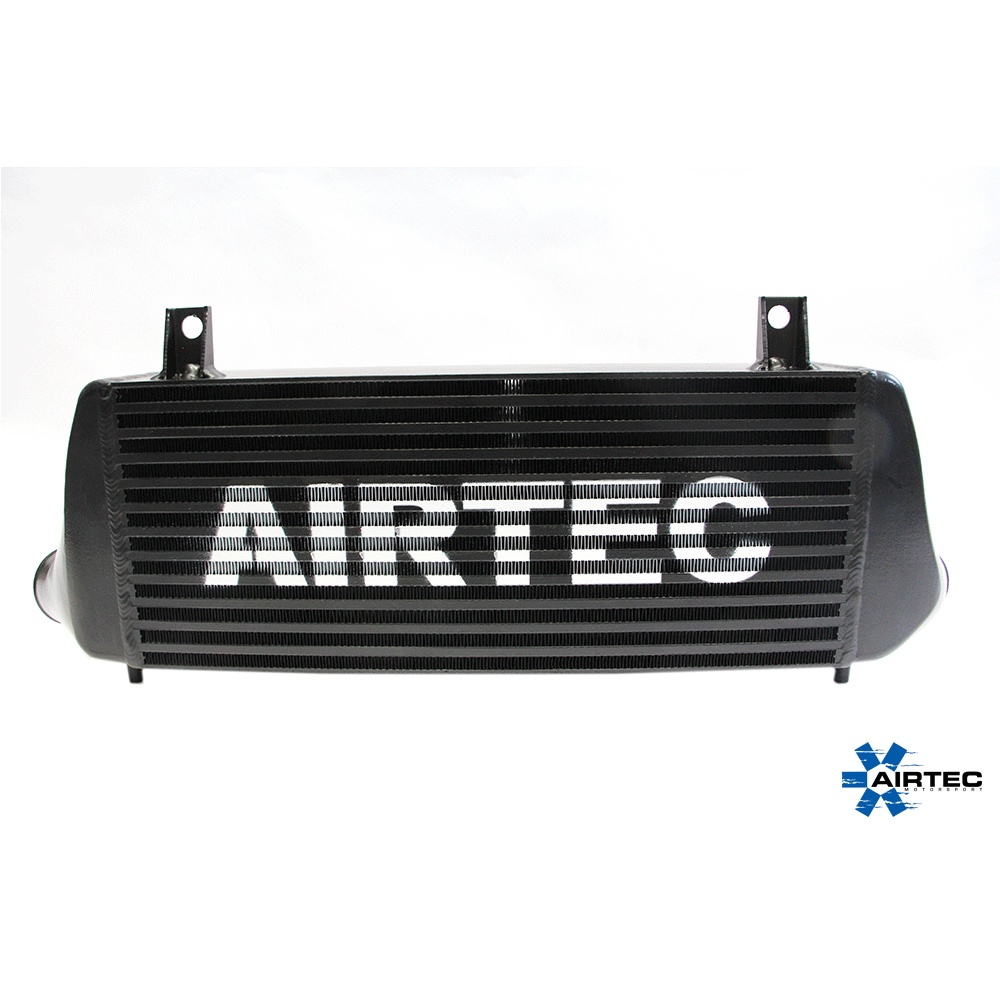

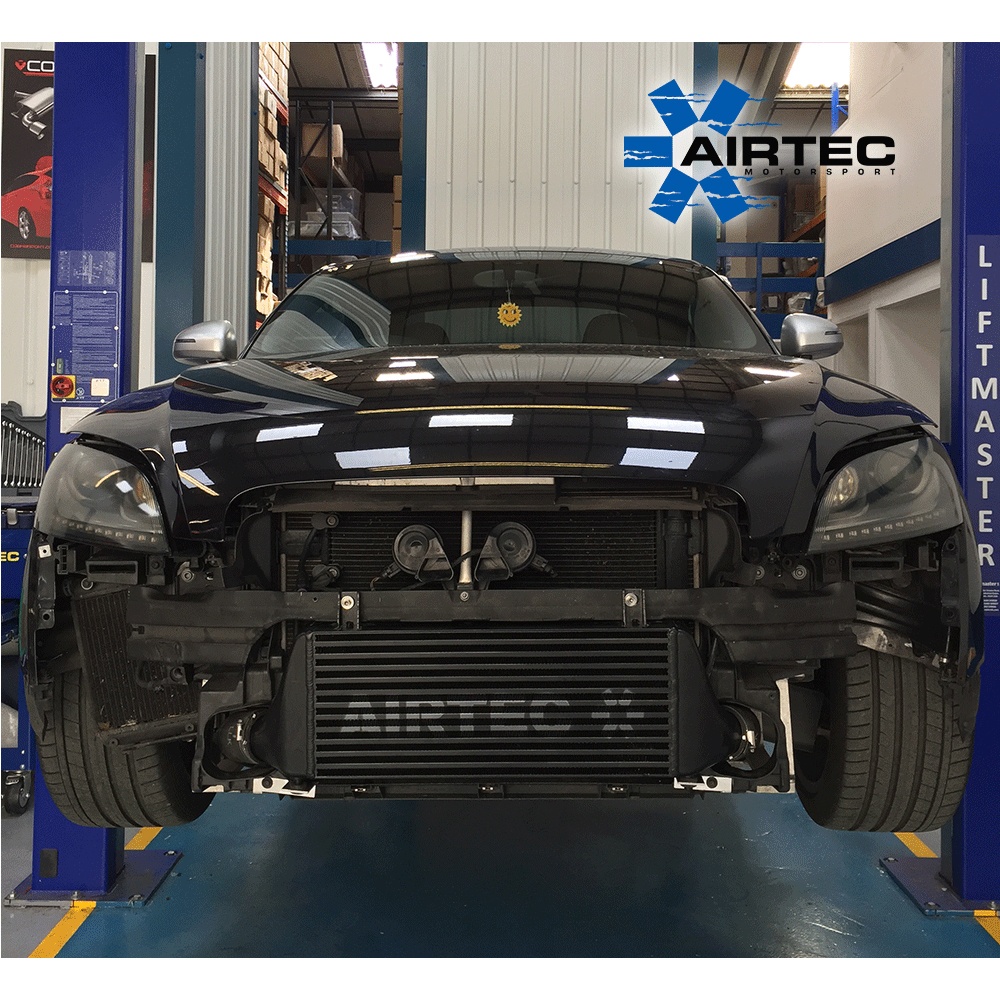

Featuring a huge 120mm core design together with high-flow, cast end tanks, the AIRTEC intercooler offers much greater surface area, efficiency and volume over standard. Despite this improvement, it fits neatly behind the original bumper and can be used with the original hoses.

The comprehensive fitting kit includes all the correct fixtures and fittings, step-by-step instructions with pictures and should take around 3-4 hours to complete.

The intercooler is available in a choice of either Natural Silver or Pro-Series Black finishes, with or without the AIRTEC logo.

Crash bar options:
The original Audi crash bar will need modifying to fit this intercooler upgrade. If you feel your DIY skills are up to the job, this can be cut yourself. Or we can supply a pre-modified crash bar for a charge.

Option 1: Without optional Crash bar – If your DIY skills are up to scratch, why not give it ago yourself Requires existing crash bar to be cut and welded.
Option 2: With Crash bar – Modified Crash bar comes powder coated and pre-cut ready to fit.

TESTED
Rolling Road test results – Carried out at AmD Tuning on 11/04/2017
Standard Intercooler:
Run 1 – Temperature in: 117 degrees – Temperature out: 69 degrees
Run 2 – Temperature in:  117 degrees – Temperature out:68 degrees
Run 3 – Temperature in:  119 degrees – Temperature out: 78 degrees

AIRTEC Motorsport Intercooler:
Run 1 – Temperature in:  116 degrees – Temperature out: 36 degrees
Run 2 – Temperature in:  117 degrees – Temperature out: 36 degrees
Run 3 – Temperature in:  118 degrees – Temperature out: 37 degrees

Dimensions:
Width: 540mm
Height: 215mm
Depth: 120mm

Features:

• Designed and manufactured in the UK by AIRTEC
• AIRTEC logo’d cast end tanks for improved airflow and unbeatable strength
• Proven reduction in charge temps
• 3-year unlimited mileage warranty
• Available in Pro-Series Black
• AIRTEC logo available at no extra charge
• Unbeatable value for money

Registered Design Right number: Application Pending

AIRTEC part no: ATINTVAG19
