AIRTEC Motorsport Stage 2 Intercooler Upgrade for Citreon DS3

Technical Data

As part of our expanding Citroën product range, AIRTEC Motorsport is proud to launch our DS3 1.6 turbo intercooler upgrade suitable for track or fast road use.

Our solution to increasing the intercooler’s size and performance is based upon our larger bar and plate core design to make the the most of the limited space available behind the bumper. The core offers a huge increase in overall capacity in comparison to the original intercooler and also offers a substantial increase in frontal area over standard, which allows it to make the very most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Despite this improvement, the kit fits neatly behind the original bumper and requires no trimming or cutting, and can be reverted back to standard with no issues. The comprehensive fitting kit includes all the correct fixtures and fittings, step-by-step instructions with pictures and Pro Hoses silicone connectors.

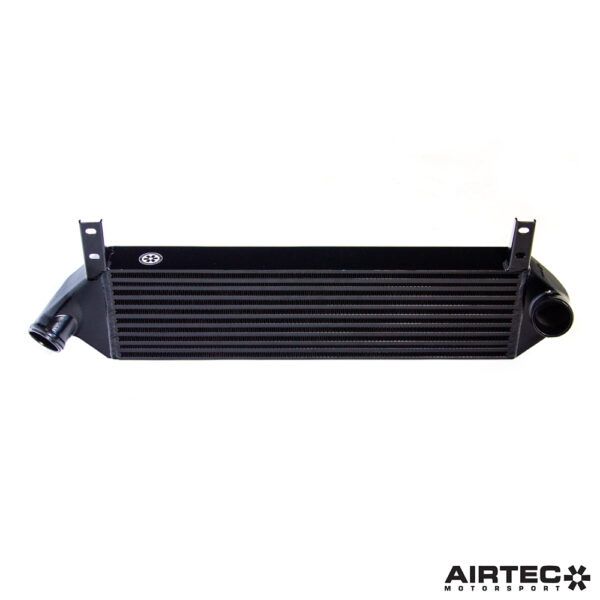

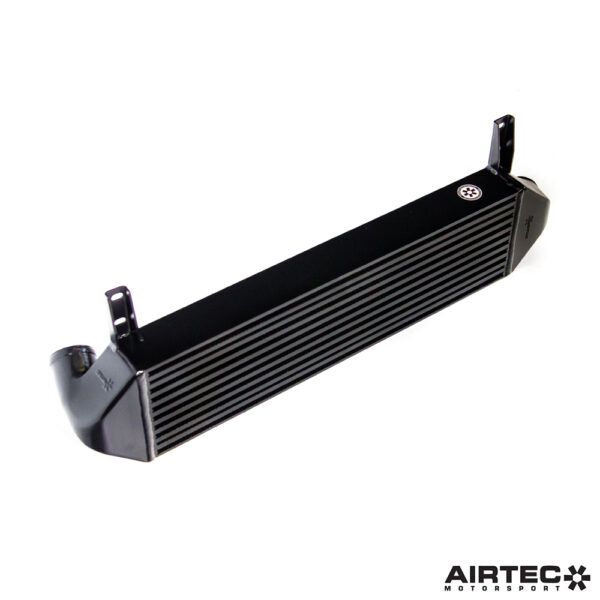

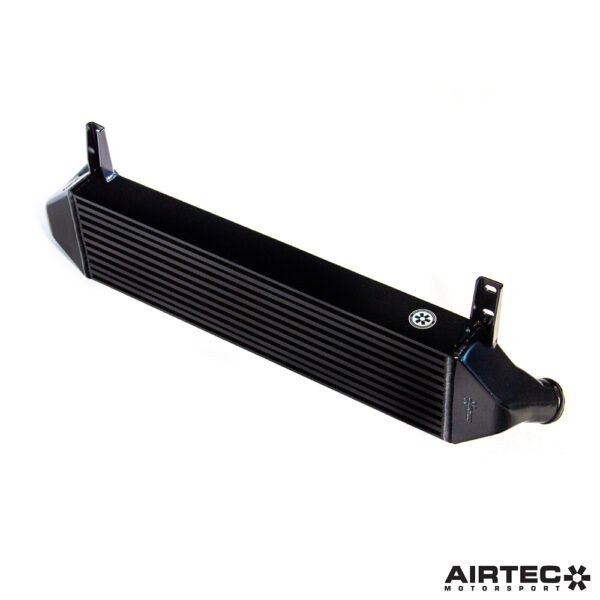

The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo).

TESTED
Rolling road tested at AmD Tuning in Essex. Test car fitted with Milltek cat back exhaust. sports cat, intake system and Stage 2 remap.

Standard Intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1
In – 166 degrees
Out – 99 degrees

Run 2
In – 191 degrees
Out – 109 degrees

AIRTEC Motorsport Intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1
In – 144 degrees
Out – 37 degrees

Run 2
In – 165 degrees
Out 42 degrees

Run 3
In – 170 degrees
Out – 46 degrees

On average, the AIRTEC Motorsport intercooler saw an increase of 11bhp over the standard intercooler.

Dimensions
Width: 760mm
Height: 175mm
Depth: 60mm

Features

• Specifically designed for the DS3 platform
• Tried and tested core design that’s proven to work
• Huge increase in cooling ability
• High-flow cast end tanks
• Pro Hoses silicone boost pipes included
• Powder coated black finish

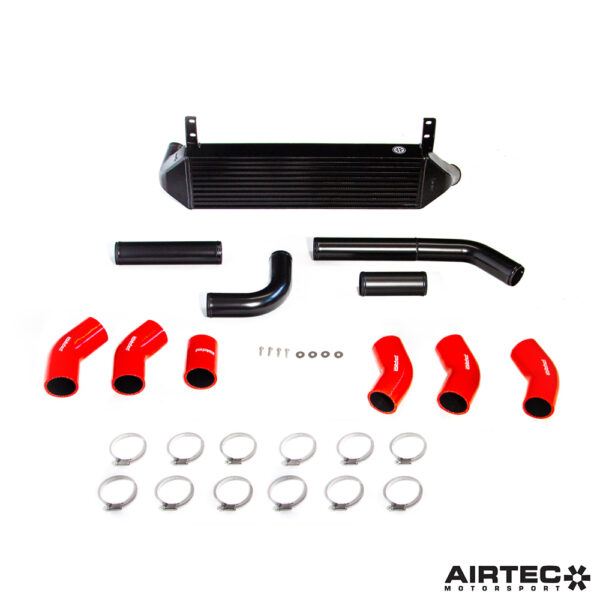

• Includes fittings and fixtures
• Detailed fitting guide included

AIRTEC part no: ATINTP&C6
