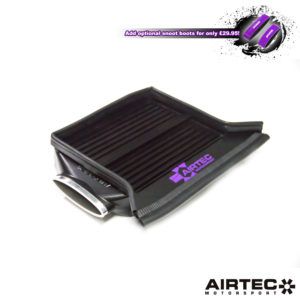

AIRTEC Motorsport Intercooler for Nissan Juke Nismo RS

Technical Data

After a long development process, we’re proud to launch our front mount intercooler upgrade kit designed for Nissan Juke 1.6 turbo models (Currently only fits with Nismo/Nismo RS front bumper).

With the vehicle’s original side-mount set up limited by its size and placement that restricts air flow, AIRTEC Motorsport’s solution to improving the set up is to utilise the available space behind the front bumper and develop a much larger front mount intercooler package. As a result, this direct replacement intercooler measures nearly twice as high and over 50% wider overall, whilst capacity is increased by a huge 5.3 litres over standard; a 133% increase. Frontal area is also increased from 50,596cm² to a huge 155,020cm², an increase of 210%, to help cool the extra capacity.

Despite the huge increase in size that will ensure charge temperatures remain lower for longer, the intercooler fits neatly behind the bumper and requires no modifications to fit.

Finished in a high-quality powder-coated black, the comprehensive fitting kit includes two aluminium boost pipes, two silicone connectors as well as all fixtures and fittings, together with a detailed, step-by-step fitting guide.

Dimensions:
OEM intercooler:
Width: 278mm
Height: 182mm
Depth: 80mm
Capacity: 4.0 litres
Front area: 50,596cm²

AIRTEC Motorsport intercooler:
Width: 460mm
Height: 337mm
Depth: 60mm
Capacity: 9.3 litres
Frontal area: 155,020cm²

Please note: this kit was developed using a Nismo/Nismo RS model and as a result, we cannot guarantee the same direct fit to non-Nismo/Nismo RS models fitted with the same engine but different bumper arrangement.


Features:

• Specifically designed for the Nissan Juke platform
• Huge increase in cooling ability
• Reduced charge temperatures
• 133% increase in capacity compared to original intercooler
• 210% increase in frontal area compared to original intercooler
• High-flow, moulded one-piece cast end tanks
• Larger inlet and outlets
• Powder coated black finish
• Direct fit with no cutting or trimming
• All fittings and fixtures included
• Detailed fitting guide included

Registered Design Right Number: Application Pending

AIRTEC Part No: ATINTNIS03
