AIRTEC Motorsport Stage 3 Intercooler for Fiesta Mk8 ST-200

Technical Data

Developed and manufactured at AIRTEC HQ in the UK, we’re proud to launch our Stage 3 front mount intercooler kit with stepped core design suitable for modified Mk8 Fiesta ST owners who want the very highest level of cooling efficiency, perfect for track or fast road use. Best suited for highly modified vehicles, you will need sufficient software and hardware to make full use of the Stage 3 intercooler.

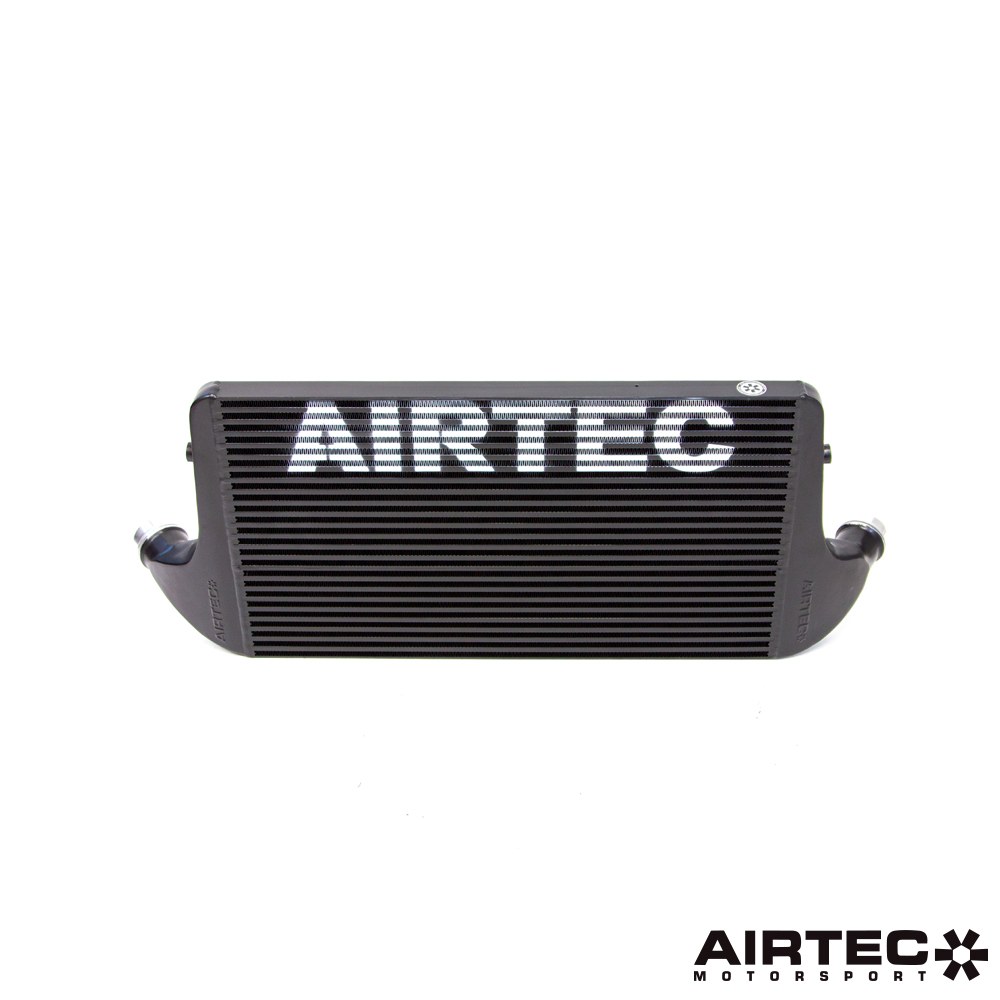

This freer-flowing intercooler features a full size, single-pass core design that covers the full width of the vehicle’s grille area. The stepped core is 80mm in depth in the lower section and 40mm in the upper section, which fits neatly in front of the standard crash bar and behind the bumper with no modification required. It therefore offers a huge increase in surface area and volume over standard, and therefore charge temperatures.

The comprehensive kit includes AIRTEC Motorsport’s cast end tanks, laser-cut brackets and all fixtures and fittings for a direct, bolt-on installation.

It’s proven cooling efficiency and straight forward fitment makes it an essential modification for all modified Fiesta Mk8 ST models.

Dimensions:

OEM intercooler

Width: 690mm

Height: 140mm

Depth: 75mm

Inlet: 50mm

Outlet: 55mm

Front area: 966cm²

AIRTEC Motorsport intercooler

Width: 710mm

Height: 415mm

Depth: 80mm to 40mm stepped core

Inlet: 60mm

Outlet: 67mm

Front area: 2,945cm²

Features:

• Cast end tanks to optimise air flow
• Larger stepped bar and plate intercooler core
• Comes complete with full fitting instructions
• Proven power increases and cooling efficiency
• Available in satin black

Registered Design Right number: 6082519

AIRTEC part no: ATINTFO52
