AIRTEC Stage 3 Intercooler Upgrade for Fiesta ST180 EcoBoost
Stage 1 – 180 – 250 BHP

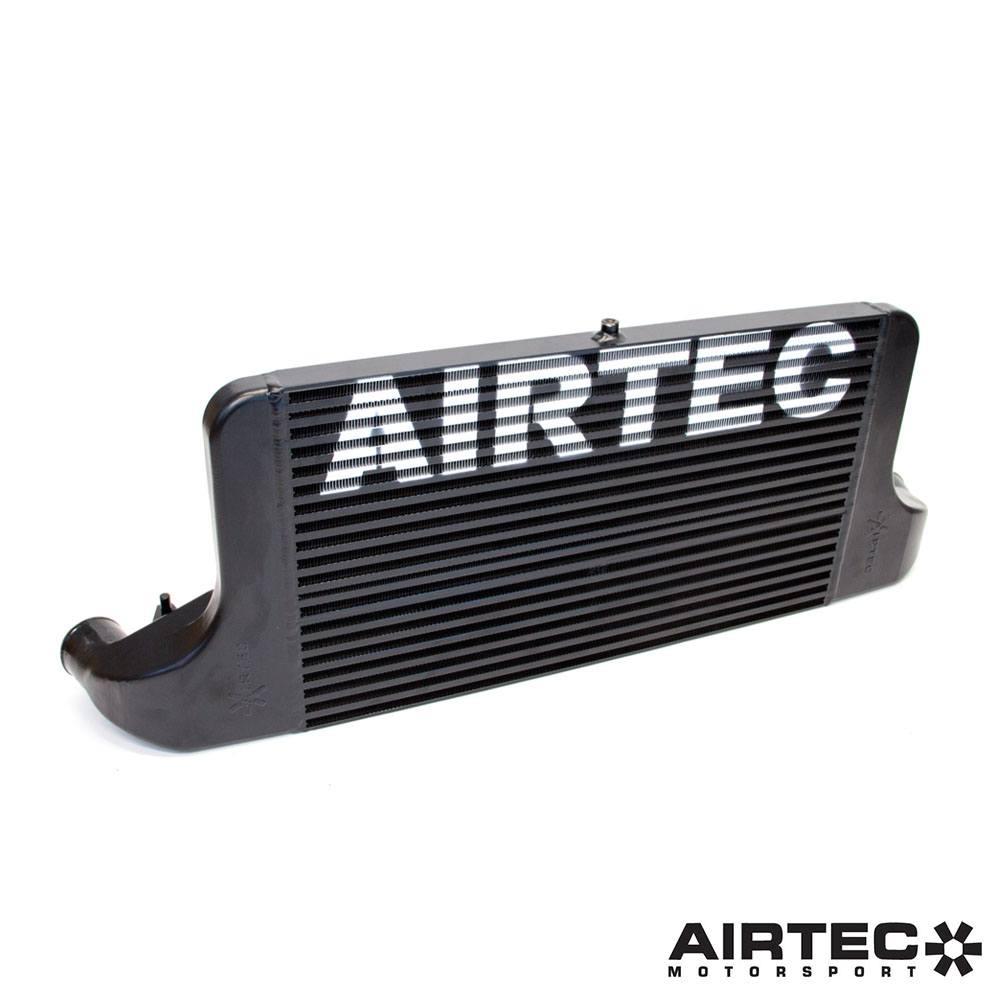

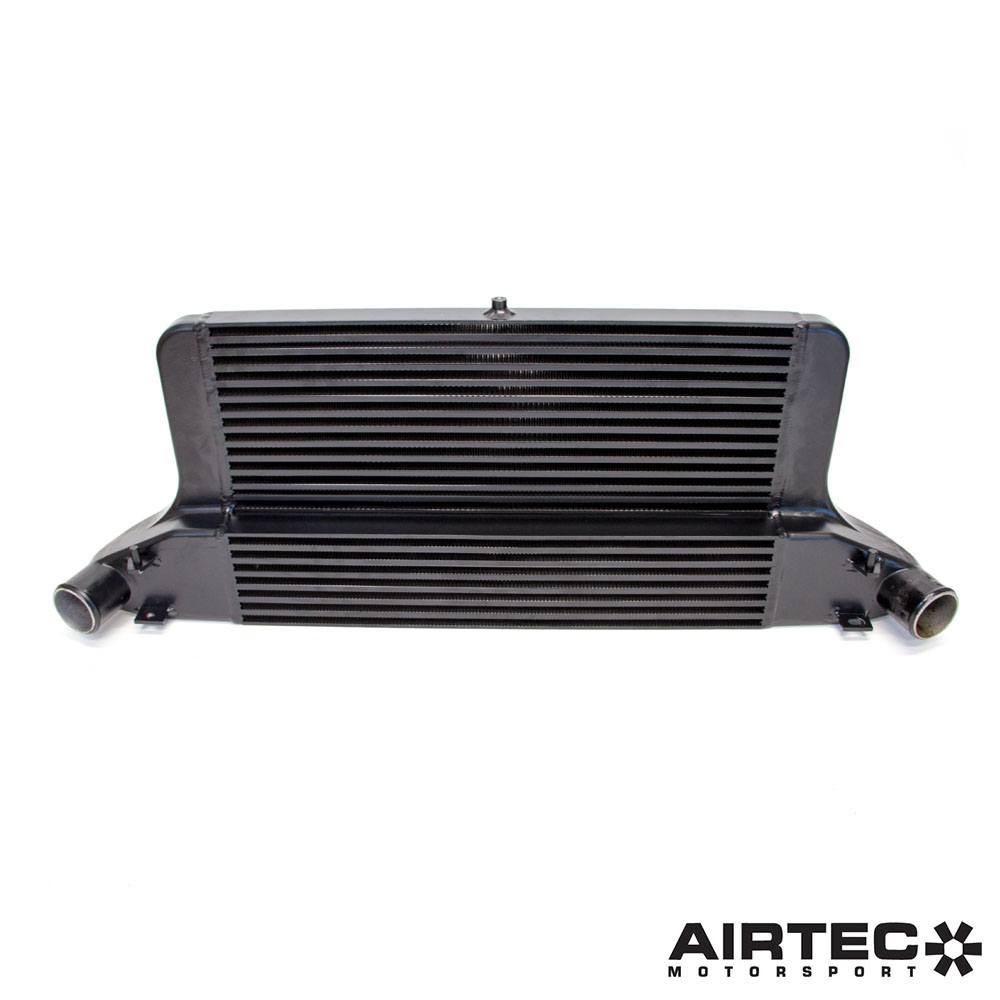

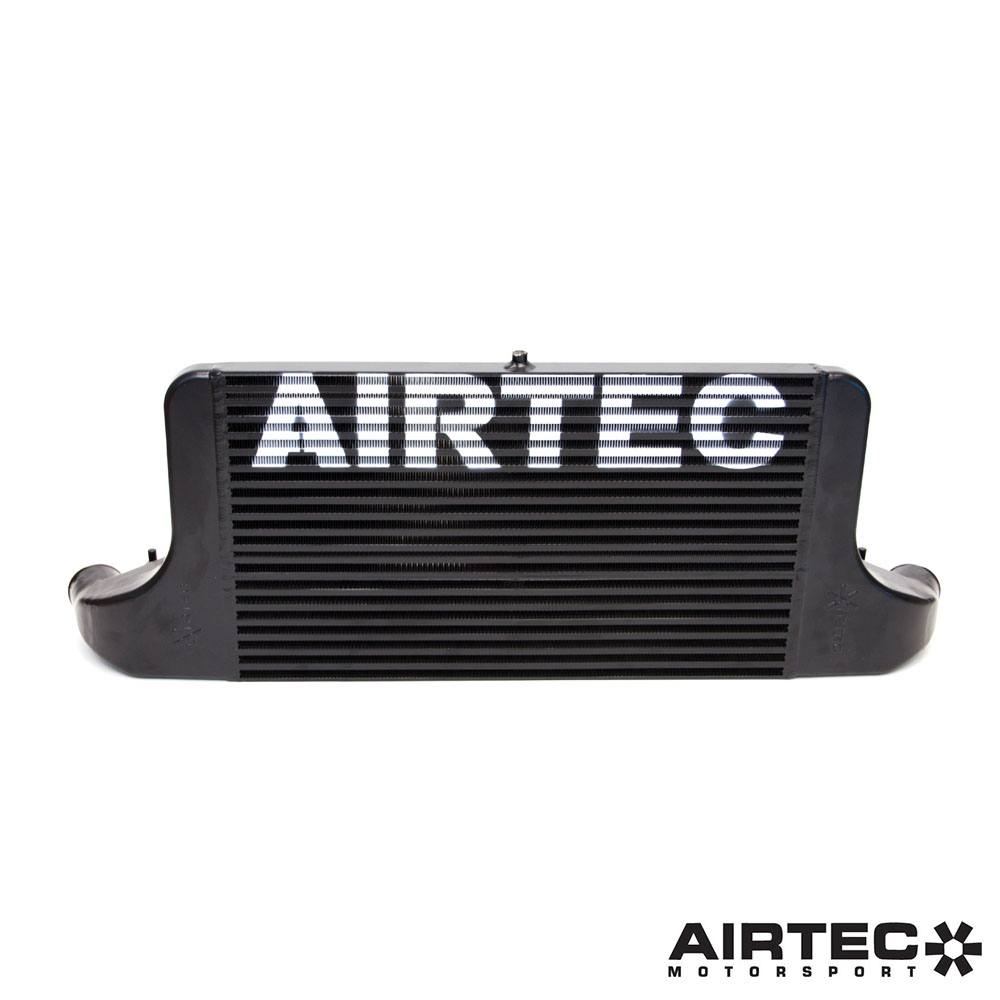

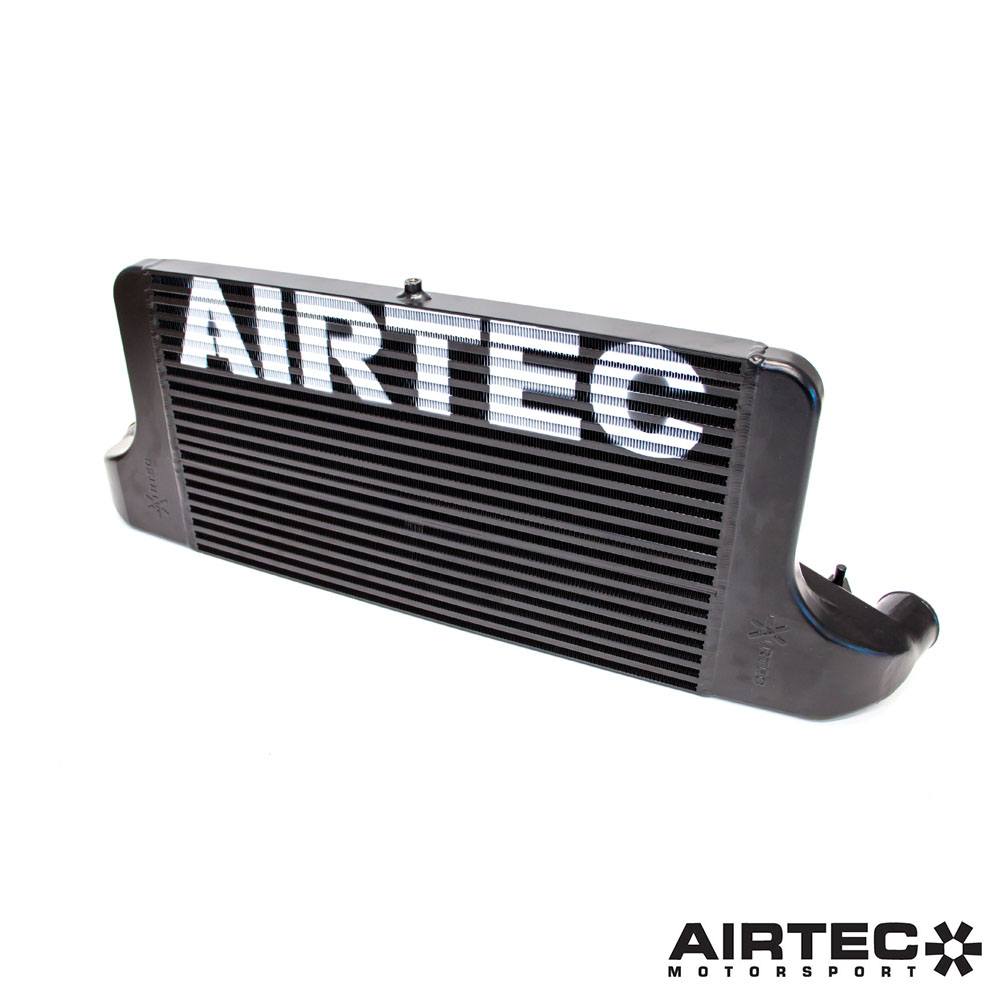

AIRTEC has now taken the intercooler on the ST180 to a whole new level, with the step core design offering a 85mm thick lower section and a 40mm thick upper section ‘The Double Decker’. The intercooler has been designed for cars running hybrid turbo’s and big turbo conversions.
AIRTEC Part No: ATINTFO26
Technical Data
AIRTEC has now taken the intercooler on the ST180 to a whole new level, with the step core design offering a 85mm thick lower section and a 40mm thick upper section ‘The Double Decker’
The intercooler has been designed for cars running hybrid turbos and big turbo conversions where fitted, however still produces fantastic gains on Stage 2 cars
If the ECU sees over 50 degrees it will back power off for engine safety, the AIRTEC intercooler keeps the temps low enough so you keep all your power.
Dimensions:
OEM Intercooler
Width: 690mm
Height: 130mm
Depth: 50mm
Capacity: 4.5 litres
Front area: 900cm²
AIRTEC Motorsport Intercooler
Width: 615mm
Height: 350mm
Depth: 85mm to 40m stepped core
Capacity: 12.1 litres
Front area: 2,150cm²
Will fit Fiesta ST 200
Now only available in Pro-Series Black.
Please note: Due to different crash bar, this will not fit US spec models.
Registered Design Right number: 6023251
AIRTEC Part No: ATINTFO26
