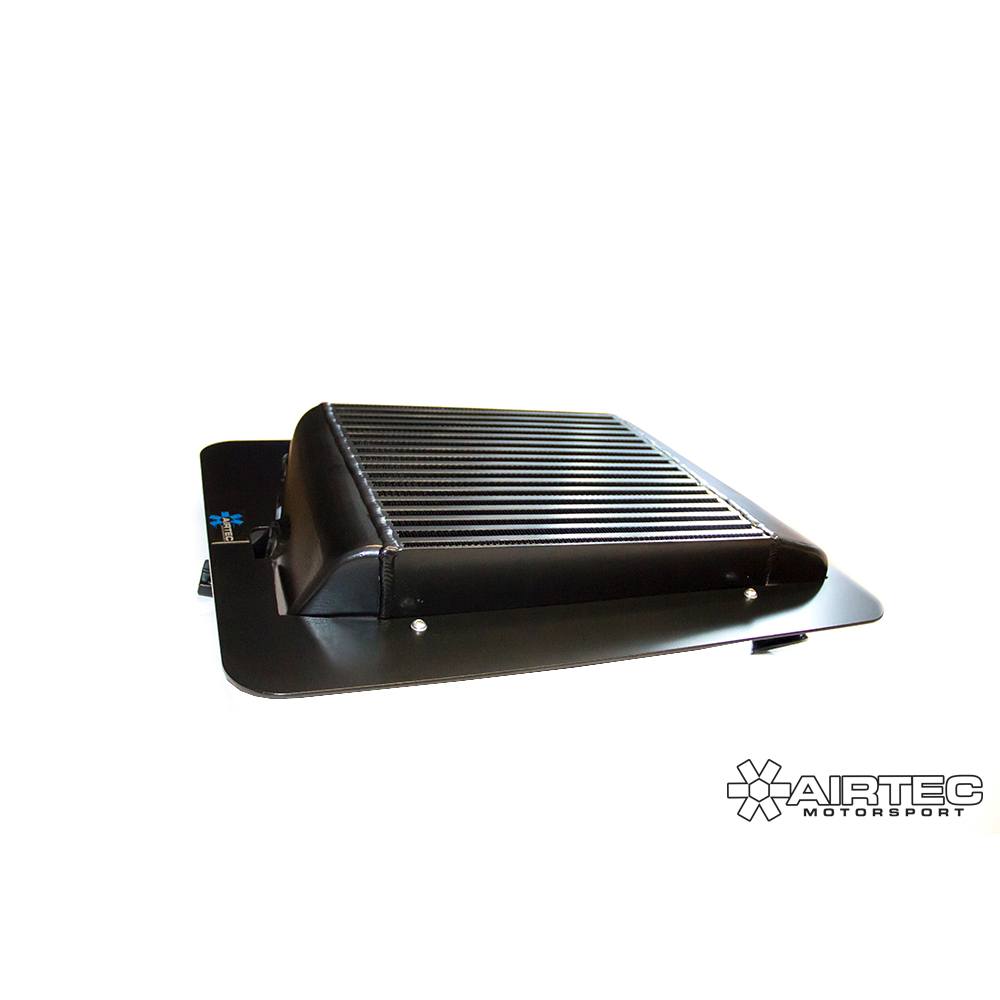

AIRTEC Top Mount Intercooler Upgrade for Mk1 Mazda 3 MPS

Technical Data

As part of our expanding Mazda product range, AIRTEC Motorsport is proud to launch our top mount intercooler upgrade suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space under the bonnet is based upon a 75mm core that’s wider and taller. This offers a massive 66% increase in overall capacity in comparison to the original intercooler, as well as a significant increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow end tanks and air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard. Fitting is a simple process that uses the original hose connectors and it comes with all fixtures and fittings.

Proven to be a great upgrade for remapped examples to help with reducing charge temperatures associated with increased boost pressure.

Dimensions:
Standard intercooler
Width: 325mm
Height: 295mm
Depth: 50mm
Capacity: 4.8 litres

AIRTEC Motorsport intercooler
Width: 340mm
Height: 310mm
Depth: 75mm
Capacity: 7.9 litres

Features:

• Proven power increase on road and track use
• 66% increase in capacity
• 75mm thick core
• High flow cast end tanks
• Full fitting instructions
• Finished in Pro-Series powder coated black
• 25 minutes fitting time depending on mechanical skill

AIRTEC part no: ATINTMAZ04
